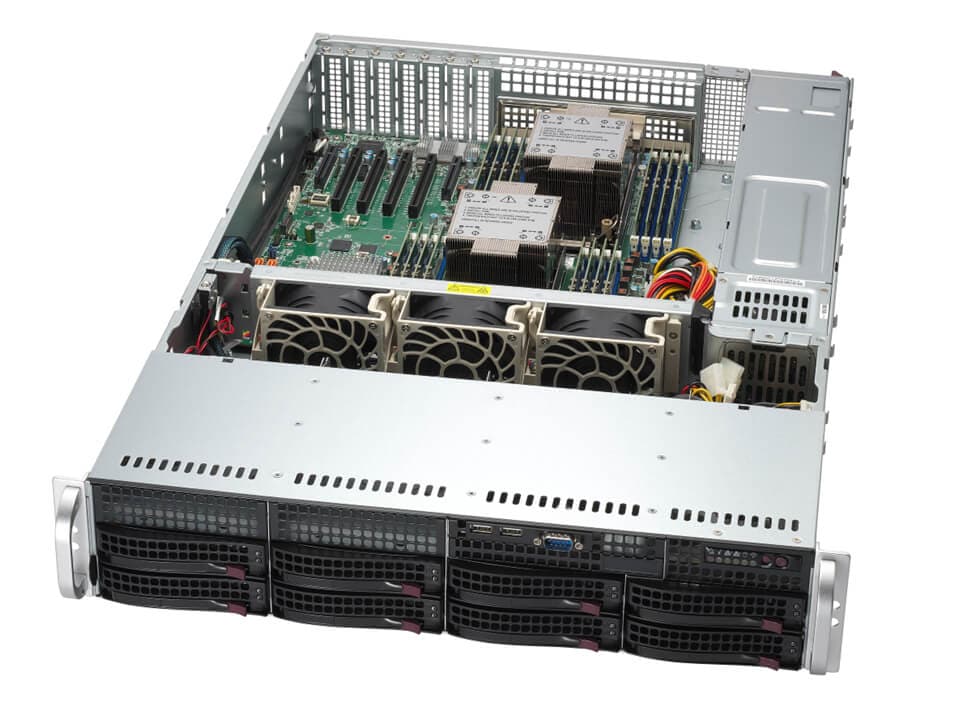

Supermicro SYS-621P-TR 2U Rackmount X13 Mainstream SuperServer
Key Applications
- Virtualization
- Enterprise Server
- Application and data serving
- Compute Intensive Applications
Key Features
- Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
- 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
- 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
- 1200W Redundant Titanium level Power Supplies
CPU
SSD
| Samsung PM893 2.5" SATA 240GB | CHF 0.00 | |
| Samsung PM893 2.5" SATA 480GB | CHF 0.00 | |
| Samsung PM893 2.5" SATA 960GB | CHF 0.00 | |
| Samsung PM893 2.5" SATA 1.92TB | CHF 0.00 | |
| Samsung PM893 2.5" SATA 3.84TB | CHF 0.00 | |
| Samsung PM893 2.5" SATA 7.68TB | CHF 0.00 |
HDD
Technische Daten
Product SKUs | |
| SuperServer SYS-621P-TR | |
| Motherboard | |
| Super X13DEI | |
| Processor | |
| CPU | Dual Socket E (LGA-4677) |
| 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors | |
| Note | Supports up to 300W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM | |
| View Memory Options | |
| On-Board Devices | |
| SATA | SATA (6Gbps) |
| Chipset | Intel® C741 |
| Network Connectivity | 2 RJ45 1GbE |
| View AOC Options | |
| Input / Output | |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 2.0 ports(front) |
| 4 USB 3.0 ports(rear) | |
| Video | 1 VGA port |
| Serial | 1 COM port(Rear) |
| 1 COM port(Front) | |
| DOM | 2 SuperDOM (Disk on Module) ports |
| TPM | 1 TPM Onboard/port 80 |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management | |
| Software | SuperCloud Composer |
| Supermicro Server Manager (SSM) | |
| Supermicro Update Manager (SUM) | |
| Supermicro SuperDoctor® 5 (SD5) | |
| Super Diagnostics Offline (SDO) | |
| Supermicro Thin-Agent Service (TAS) | |
| SuperServer Automation Assistant (SAA) New! | |
| Power configurations | ACPI/APM Power Management |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware |
| Secure Boot | |
| Secure Firmware Updates | |
| Automatic Firmware Recovery | |
| Supply Chain Security: Remote Attestation | |
| Runtime BMC Protections | |
| System Lockdown | |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring |
| Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors | |
Chassis | |
| Form Factor | 2U Rackmount |
| Model | CSE-825BTS-R1K23LPP1 |
| Dimensions and Weight | |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Gross Weight: 69 lbs (31.2 kg) |
| Net Weight: 36.38 lbs (16.5 kg) | |
| Available Color | Black |
| Front Panel | |
| LED | HDD activity |
| Network activity | |
| Power status | |
| System information (overheat/UID) | |
| Buttons | Power On/Off |
| System Reset | |
| Expansion Slots | |
| PCI-Express (PCIe) Configuration | Default |
| 2 PCIe 5.0 x8 LP slots | |
| 4 PCIe 5.0 x16 LP slots | |
| View AOC Options | |
| M.2 | 2 M.2 PCIe 4.0 x2 NVMe slots (M-key) |
| Drive Bays / Storage | |

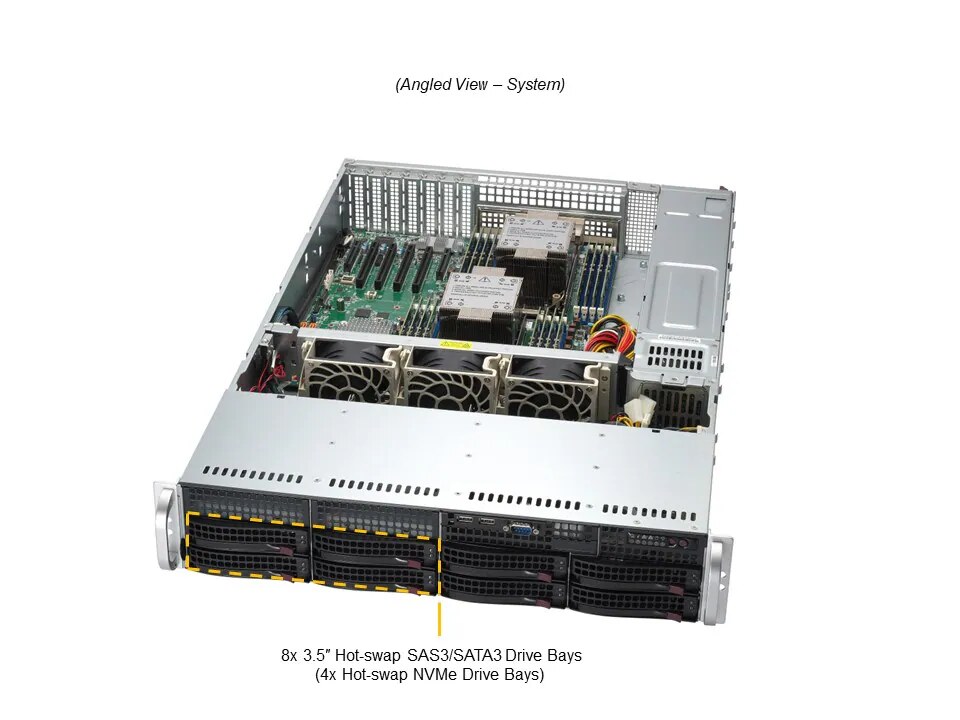

| Drive Bays Configuration | Default: Total 8 bays |
| 4 front hot-swap 3.5" NVMe*/SAS*/SATA drive bays | |
| 4 front hot-swap 3.5" SAS*/SATA drive bays | |
| (*NVMe/SAS support may require additional storage controller and/or cables) | |
| View NVMe Options | |
| View Drive Options | |
| M.2 | 2 M.2 NVMe slots (M-key) |
| View M.2 Options | |
| Peripheral Bays | 1 slim DVD bay (optional) |
| System Cooling | |
| Fans | 3 middle 8cm Fan(s) |
| Power Supply | |
1x 1200W Redundant Titanium Level (96%) power supply | |
| Dimension (WxHxL) | 76 x 40 x 336 mm |
| Input | 1000W: 100-127Vac |
| 1000W: 100-127Vac / 50-60Hz | |
| 1200W: 200-240Vac | |
| 1200W: 200-240Vac / 50-60Hz | |
| 1200W: 200-240Vdc / 50-60Hz (for CCC only) | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 100A / Min: 0A (200Vdc-240Vdc) | |
| Max: 100A / Min: 0A (200Vac-240Vac) | |
| 5V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | |
